SB

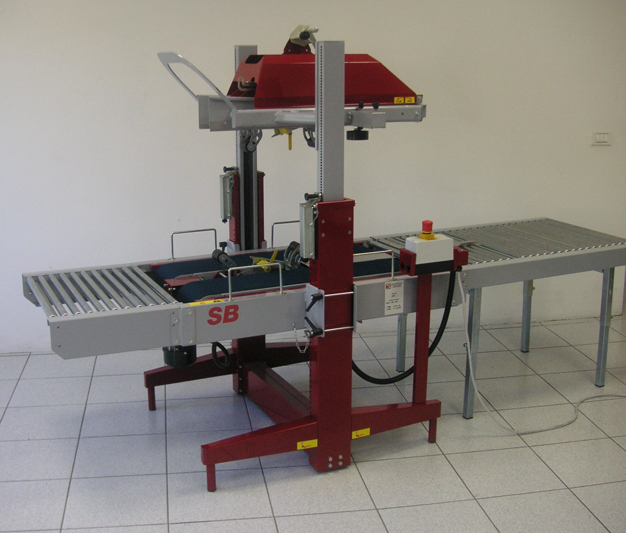

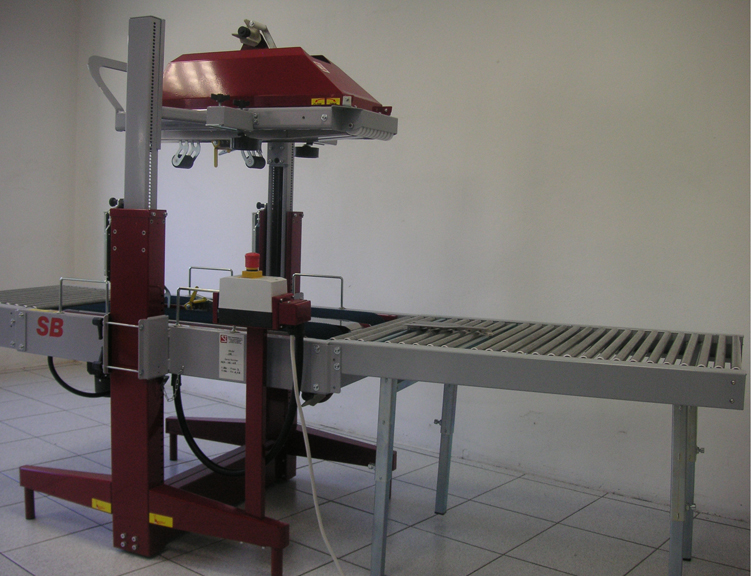

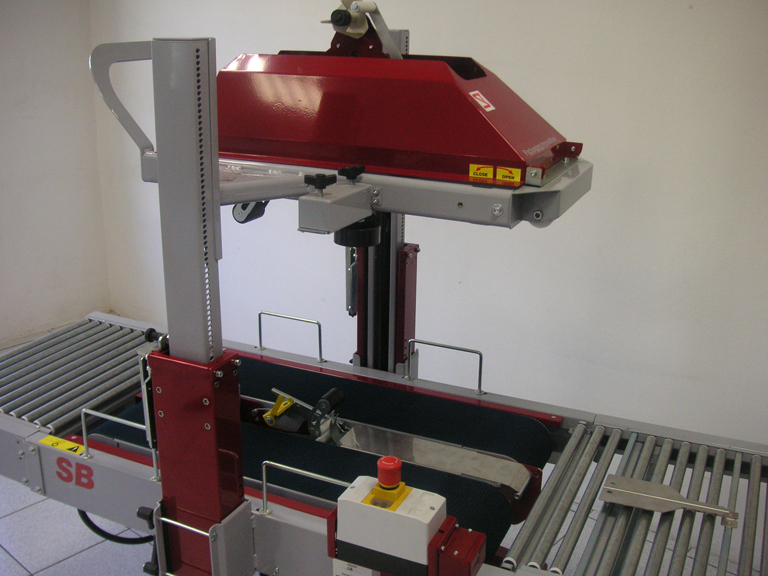

Semi-Automatic Uniform Carton Sealer with Bottom Drive Belts
The operator simply folds the top flaps of the corrugated carton and feeds it into the machine. The SB applies a single tape strip, in 38 / 50 or 75mm on the top and bottom of the carton simultaneously. This two belt bottom-drive system is a heavy duty machine designed for any kind of working areas. Easy operation, high performances and perfectly closed boxes are granted by using this machine.
The working height of the machine can easily be adapted. SIRTEC machines can start from a working height of 350mm to 850mm (Packaging line height). Extreme bending or lifting belongs to the past. We offer you a state of the art machine, produced and developed according the latest European rules of safety. Our machines will let your employees smile.
Adjustment
The SB can be easily adjusted in only seconds to process a different size carton.
Standard delivery
Included with Bottom and Top Tape heads, for 38 / 50 or 75 mm
Utilization
Excellent for low profile, average, normal weight boxes
Specials
“Patented” belt change and tensioning system, ensure you a low maintenance cost and a maximum output of boxes per hour.
Minimum and maximum box sizes
Minimum box length from 130mm
Width from 130mm to 650mm
Height from 100 to 800mm
We offer you a standard wide range of boxes, which we can close with our standard models.
Power Supply
Available in 400Volt 3 phase 50-60Hz
Available in 230Volt 1 phase 50-60Hz
Product Downloads
This product has downloads in different languages. To download additional information about this product, click on the flag of the language you prefer:
More information?
Do you have any questions about this SIRTEC S.r.l. product, or do you want to request additional information? Feel free to contact us, click here to go to the contact page.
